Intelligent FVE controller

SUNTRINO SMART HOME

A control unit that can be used separately to manage the consumption of your home or even better in combination with the SUNTRINO INFO HOME information terminal and the SUNTRINO EV HOME charging module or the SUNTRINO WALLBOX charging station.

Function

  • in the simple variant it controls 6x output (2x SSR and 4x relays),
  • priority-based management, if the previous priority is not met, proceed to the following. If conditions of a higher priority task are met, the power to the lower priority tasks is decreased,
  • can work in a wattrouter mode or in a smart mode, where it is decided on the basis of additional information about battery status, HDO status and current power from the converter,
  • fully dynamic control of power distribution to individual outputs,
  • when the power of the inverter in a given branch is exceeded, the power is limited in order to minimise consumption from the grid,
  • optional setting of time schemes,
  • storing of all measured graphs,
  • can control other elements of the Suntrino series – electric car rechargers, additional outputs.
  • Possible appliance configurations
  • Possible appliance configurations
  • Possible appliance configurations
  • Possible appliance configurations
  • SMART HOME controller wiring diagram

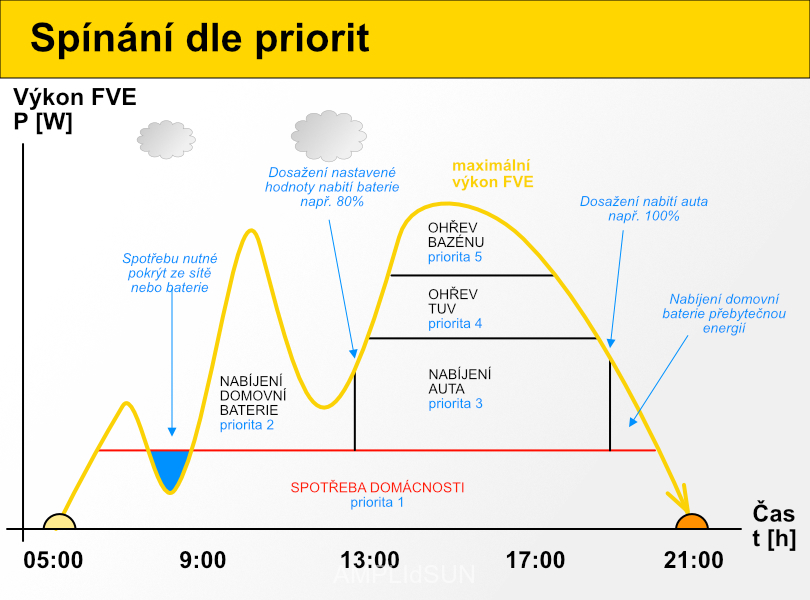

  • Controller functions according to priorities in case of changing FVE performance

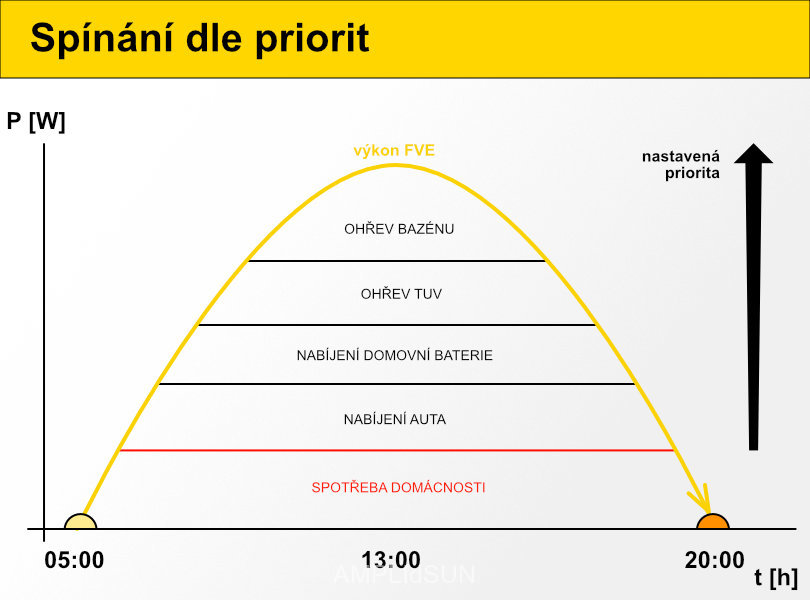

  • Controller functions according to priorities in case of changing FVE performance
  • SUNTRINO SMART HOME CONTROLLER
  • Information display of the SUNTRINO SMART HOME CONTROLLER
  • Tab for setting up one appliance in the PC app

Parameters

  • 4x output to rele (DC 24V/500 mA),
  • 2x output to SSR (DC supply 24V/500mA, control voltage: DC 0-10V/200mA, DC 0-5V/200mA or arbitrarily adjustable interval in the range of 0-10V),
  • OLED display for displaying important data,
  • USB port for PC connection,
  • RS485 port for connecting other components of the SUNTRINO family (information terminals, EV charging terminals, web server, …)
  • RS485 port for connection to the GOODWE converter,
  • Real-time clock,
  • Internal memory 128MB (for statistics and settings),
  • All outputs and inputs are galvanically separated.
