The charging module for electric vehicles

SUNTRINO EV HOME

This component is ready to be built into the interior of the garage, exterior facade, etc., where it will be perfectly used for charging your electric car, either as a stand-alone unit or controlled by the SUNTRINO SMART HOME controller. You can then control the charging status from the opposite end of the building using the SUNTRINO INFO HOME information terminal.

Charging Modes

  • Full battery - charging with the maximum power
  • The set number of km - charging with the maximum power until the set number of km,
  • ECO - charging at a low tariff
  • Smart - Charging controlled by connected controller SUNTRINO SMART HOME

Function

  • Clear user interface,
  • automatic start of the set mode after connecting the electric car,
  • logging of charging cycles (charging start time, total charging cycle time, charging power in time) ,
  • automatic switching of day and night (light and dark) GUI mode.
  • Possible appliance configurations
  • Display when charging in the Number of km mode
  • Charging display in the smart mode
  • Night mode - when in the Smart mode
  • Viewing charging protocols and statistics
  • Viewing charging protocols and statistics
  • Interface for changing of charging parameters
  • Charger information

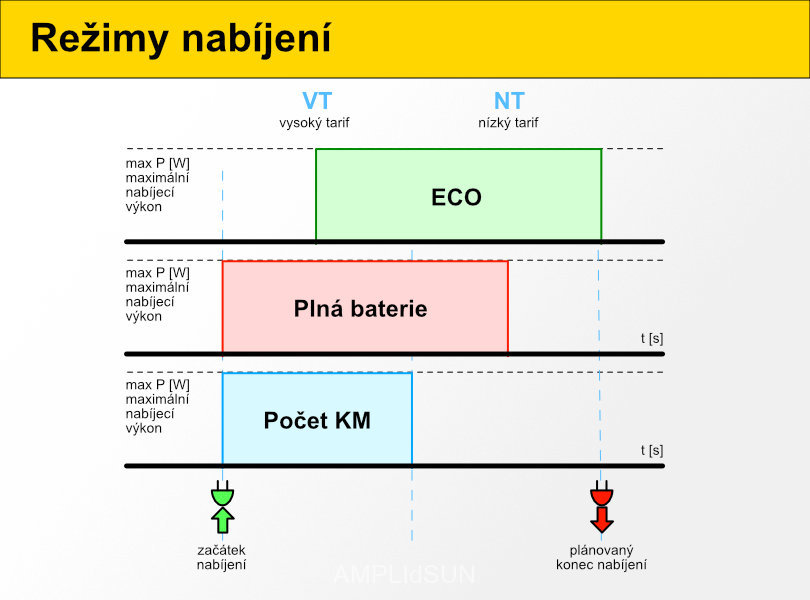

  • Comparison of charging modes (without the controller connected)

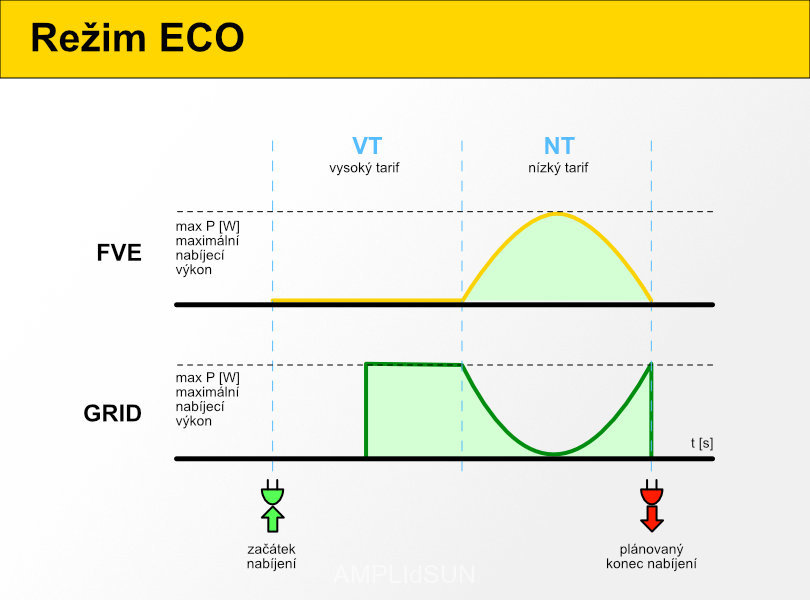

  • Smart regulator function when charging the vehicle in ECO mode
  • Smart controller function when charging the car in the Full Battery mode

Parameters

  • Implemented SAE J1772 AC Level 2, 3F,
  • maximum charging power adjustable between 6 - 80 A,
  • 800 x 480 px TFT touch screen,
  • Hodiny reálného času
  • 128MB memory for charging logs, charging charts, statistics,
  • 3x output per relay,
  • 1x HDO input,
  • RS485 port for connecting electricity meters,
  • all inputs and outputs are galvanically separated.
